Undercut Anchor Sleeve M6 (Hs 4) SW9

Undercut Anchor Sleeve is similar to other Expansion Bolt,

It's fix into the back of the marble,Ceramic Tile,Fiber Cement

Due to the Special Undercut Hole Size

Bottom size is 2mm bigger than straight size

It's much strength then normal expansion bolt

Size: M6 (HS=4) S9

Weight : 1.5Kg/1000Pcs

Packing: 1500 Pcs/Box , 8 Box/Carton , 48 Cartons/Pallet

Carton Size : 27*39*17CM

Pallet Size : 80*120CM


Undercut Anchor Sleeve is alwasy used with Flange Bolt or (Screw +Nut),we call it KUA-01 & KUA-02 .

KUA-01: Anchor Sleeve+Flange Nut+Screw

KUA-02: Anchor Sleeve+Flange Bolt

See the difference between KUA-01 & KUA-02

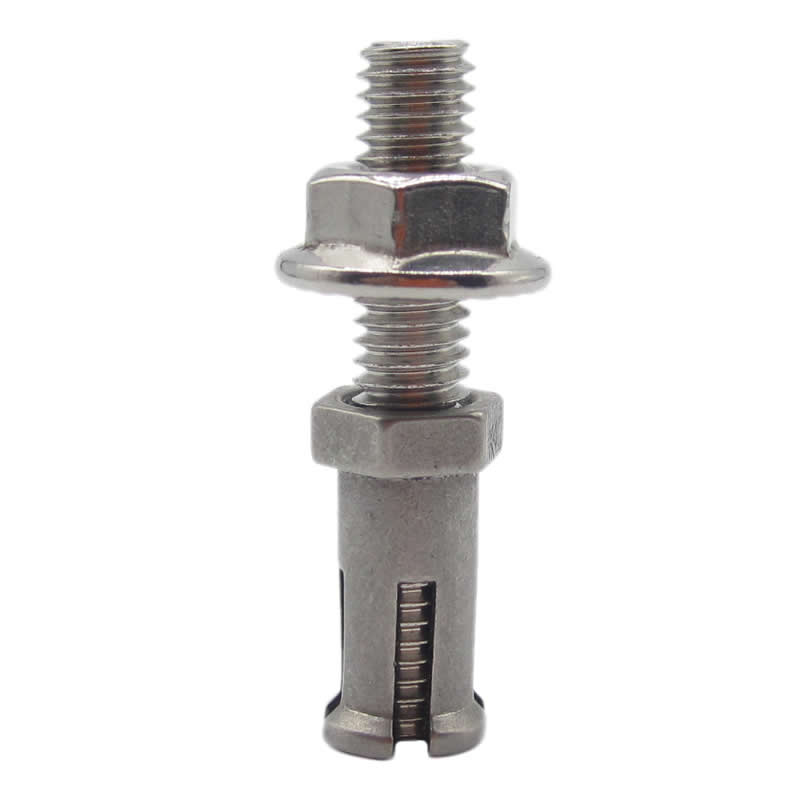

Undercut Anchor KUA-01 full set

Jaring Facades has produced Hs 4 S9 for our clients in March 2024,it's used for thin ceramic tile,the drilling depth is 4mm.Please check the more photos of details below:


Undercut Anchor Sleeve Manufacturer in China

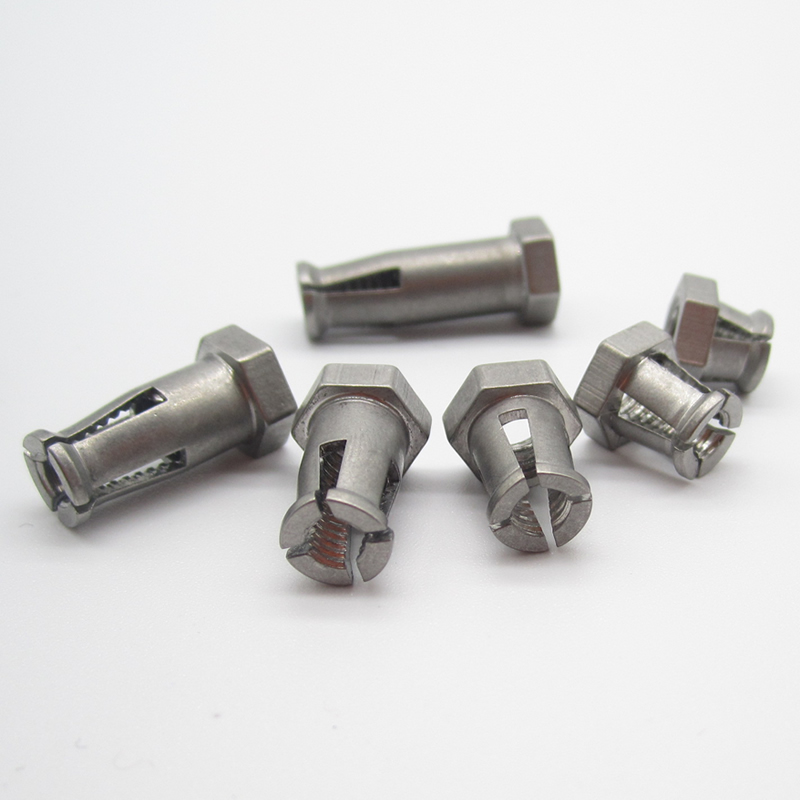

Undercut Anchor SW9 Hs 4

Undercut Anchor Full Length 7mm including the hex head 3mm,so the hole drill depth is 4mm.

Undercut Anchor Full Length 7mm including the hex head 3mm

This is the min size of undercut anchor we produced in the past 12years,we packing 1500pcs per box ,8boxes per carton,so it's 12000pcs per carton.

Stainless Steel A4/70 Undercut Anchor S9 Hs4


Packing Details of Undercut Anchor Hs-4 SW9

Please check the good packing of undercut anchor from Jaring Facades.

Packing photos of Hs4 S9


1.Product Descriptions

   Name: Undercut Anchor Full Set

   Type: KUA

   Material: AISI316 A4/70

   Size: M6(Hs=4) S9


A4/70 Undercut Anchor SW9 M6





  • The UnderCut Anchor consists of an Anchor Sleeve and a Flange Bolt.
  • Anchor sleeve and bolt length have to be matched to the hole depth required and to the panel bracket chosen.
  • The anchor sleeve is expanded to its original dimension by inserting the screw to a controlled depth,so that the sleeve sits snugly against the undercut section of the hole in the facade panel.


Fiber Cement Undercut Anker KUA02


Undercut hole on Fiber Cement


3.For use in:

Natural Stone | Artificial Panel |Fibre Cement | Ceramic | Porcelain Tiles


Ceramic Tile Undercut Anchor


4.How to Choose suitable Anchor Sleeve size according to your stone thickness ?

 1/2*stone thickness  < HS < 2/3* stone thickness

(For example : If your ceramic tile thickness is 9mm,we suggest to choose hs=5,the hole drilling depth is 5mm)


Jaring Undercut Anchor Sleeve All Size


5.How to calculate the length of the flange bolt ?


How to calculate the length of the bolt to suitable for undercut anchor


6.Technical information


Jaring Undercut Anchor Drilling Hole Technical Data


7.Undercut Anchor Fixing Systems Drawing


KUA-02 + Alu Clip R01 + SS/GI Bracket + Mechanical Anchor / Through Bolt


R01 Clip with Undercut Anchor KUA02 fixing on the fiber cement


Aluminum Alloy Pendant ZM01/H01 used with KUA02


Under Cut Anker KUA02 and Alu Alloy Bracket ZM01 fixing on the fiber cement


UnderCut Anker KUA-01 and Alu Bracket ZM01 fixing on the fiber cement


8.Square Washer with 2 Hex Hole S10 to fix Jaring anchor sleeve


square washer plate pad with hex hole to fix undercut anker


9. More photos of KUA-02 undercut anker


KUA01 and KUA02 on the fiber cement


Aluminum Alloy Bracket Pendant with Back Stone Anchor KUA01 and Adjusting screw


undercut anchor fixing on the ceramic tile


pick up easily the undercut anchor with ceramic tile by hand


Undercut Anchor KUA02 fixing on the ceramic tile


SS316 A4 Undercut Anchor KUA-02 M6*10 (Hs=7) S9



10. Certificate and Test Report of Jaring Undercut Anchor

 Download Test Report on Computer:


Certificate of Conformity for KUA02


CE certificate of Jaring Undercut Anchor


Mill Test Certificate (MTC) of Undercut Anchor KUA02


undercut anchor Test Report from Isreal client
Pull Testing Certificate from Iran Client


Pull Out Testing Certificate of KUA anchor
Pull Off Testing Result of Undercut Anchor Bolt
Pull out testing result of Jaring Undercut Anchor


We do Pull Out Testing at our factory with Pull Out testing machine


11. Jaring Undercut Anchors Building Facades Projects


Jaring Undercut Anchor Bolt for projects all over the world


12. Jaring Undercut Anchors Exported to all over the world in the past 15years.

   We are waiting for your join and choosing high quality Undercut Anchoring System from Jaring Facades!


Jaring Facades Clients from the countries all over the world



  • JaringFacade is a company who focused on the quality,delivery time and after-sales services.
  • We can't promise price is the lowest in China,but we can promise our quality is the best.
  • We don't cheat anyone,we don't do one time business.
  • We have produced and exported undercut anchoring system,stone cladding fixings for 15years.
  • Most of our new clients are becoming long-term friends.
  • Even though we have done the best,there is still unhappy things happened in these years,
  • But we never avoid it,we always face the trouble and try the best to solve it with our clients.
