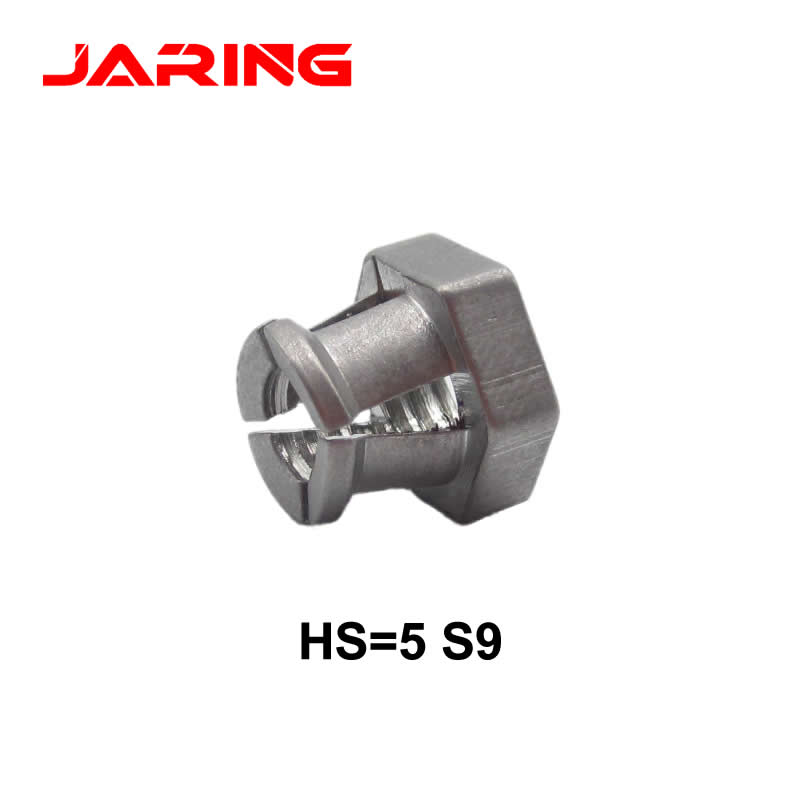

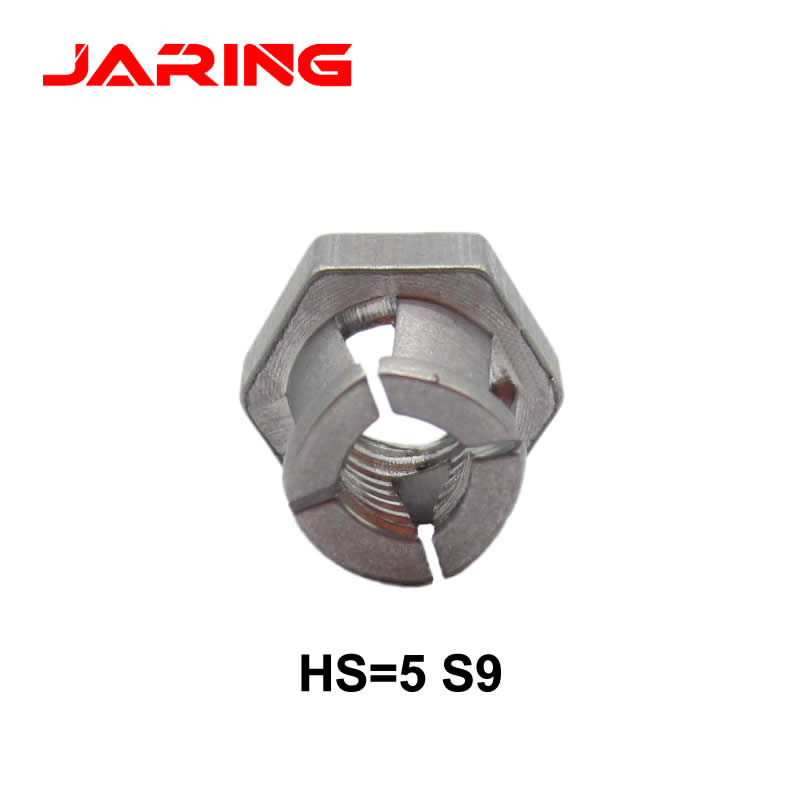

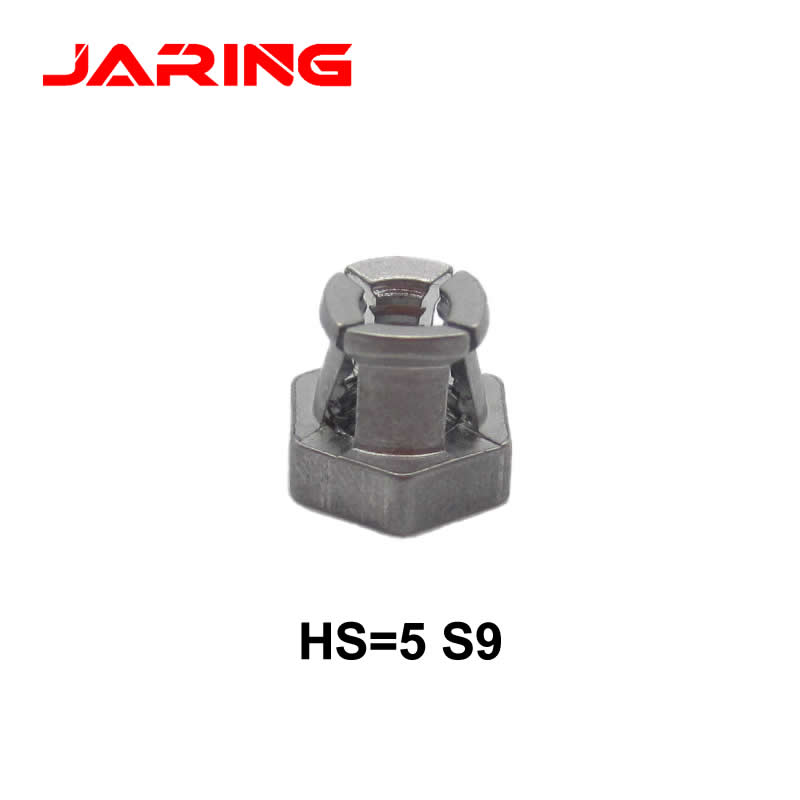

A4 Undercut Anchor Sleeve M6 (HS=5) SW9

Undercut Anchor Sleeve is similar to other Expansion Bolt,

It's fix into the back of the marble,Ceramic Tile,Fiber Cement

Due to the Special Undercut Hole Size

Bottom size is 2mm bigger than straight size

It's much strength then normal expansion bolt


Size: M6 (HS=5) S9

Weight : 1.6Kg/1000Pcs

Packing: 1000 Pcs/Box , 6 Box/Carton , 48 Cartons/Pallet

Carton Size : 27*29*17CM

Pallet Size : 80*120CM
Inquiry



Undercut Anchor Sleeve is alwasy used with Flange Bolt or (Screw +Nut),we call it KUA-01 & KUA-02 .

KUA-01: Anchor Sleeve+Flange Nut+Screw

KUA-02: Anchor Sleeve+Flange Bolt

See the difference between KUA-01 & KUA-02



UNDERCUT ANCHOR KUA02 BLACK SURFACE



1.Product Descriptions

   Name: Undercut Anchor Full Set

   Type: KUA-02

   Material: AISI316/A4 AISI304/A2

   Size: M6*8 (Hs=5) S9

   Contains: Flange Bolt +Anchor Sleeve



Undercut Anchor KUA-02 - Flange Bolt and Anchor Sleeve





2.Features:

  • The UnderCut Anchor consists of an Anchor Sleeve and a Flange Bolt.
  • Anchor sleeve and bolt length have to be matched to the hole depth required and to the panel bracket chosen.
  • The anchor sleeve is expanded to its original dimension by inserting the screw to a controlled depth,so that the sleeve sits snugly against the undercut section of the hole in the facade panel.



Fiber Cement Undercut Anker KUA02



Undercut hole on Fiber Cement



3.For use in:

Natural Stone | Artificial Panel |Fibre Cement | Ceramic | Porcelain Tiles



Ceramic Tile Undercut Anchor



4.How to Choose suitable Anchor Sleeve size according to your stone thickness ?

 1/2*stone thickness  < HS < 2/3* stone thickness

(For example : If your ceramic tile thickness is 9mm,we suggest to choose hs=5,the hole drilling depth is 5mm)

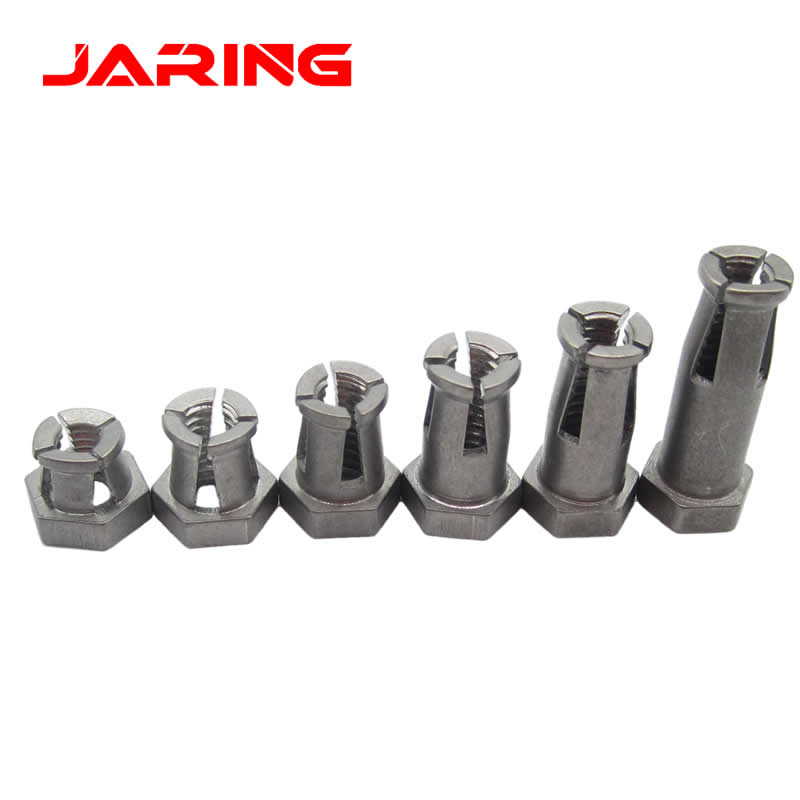

Jaring Undercut Anchor Sleeve All Size



5.How to calculate the length of the flange bolt ?



How to calculate the length of the bolt to suitable for undercut anchor



6.Technical information



Jaring Undercut Anchor Drilling Hole Technical Data



7.Undercut Anchor Fixing Systems Drawing



KUA-02 + Alu Clip R01 + SS/GI Bracket + Mechanical Anchor / Through Bolt



R01 Clip with Undercut Anchor KUA02 fixing on the fiber cement



Aluminum Alloy Pendant ZM01/H01 used with KUA02



Under Cut Anker KUA02 and Alu Alloy Bracket ZM01 fixing on the fiber cement



UnderCut Anker KUA-01 and Alu Bracket ZM01 fixing on the fiber cement



8.Square Washer with 2 Hex Hole S10 to fix Jaring anchor sleeve



square washer plate pad with hex hole to fix undercut anker



9. More photos of KUA-02 undercut anker



KUA01 and KUA02 on the fiber cement



Aluminum Alloy Bracket Pendant with Back Stone Anchor KUA01 and Adjusting screw



undercut anchor fixing on the ceramic tile



pick up easily the undercut anchor with ceramic tile by hand



Undercut Anchor KUA02 fixing on the ceramic tile



SS316 A4 Undercut Anchor KUA-02 M6*10 (Hs=7) S9



Stainless Steel 316 A4 Under Cut Anker S9*7 Black surface



316 A4 Flange Hex Bolt M6*10



Stainless Steel 304 A2 Flange Bolt M6 M8



10. Certificate and Test Report of Jaring Undercut Anchor

 Download Test Report on Computer:



Certificate of Conformity for KUA02



CE certificate of Jaring Undercut Anchor



Mill Test Certificate (MTC) of Undercut Anchor KUA02



undercut anchor Test Report from Isreal client
Pull Testing Certificate from Iran Client



Pull Out Testing Certificate of KUA anchor
Pull Off Testing Result of Undercut Anchor Bolt
Pull out testing result of Jaring Undercut Anchor



We do Pull Out Testing at our factory with Pull Out testing machine



11. Jaring Undercut Anchors Building Facades Projects



Jaring Undercut Anchor Bolt for projects all over the world



12. Jaring Undercut Anchors Exported to all over the world in the past 15years.

   We are waiting for your join and choosing high quality Undercut Anchoring System from Jaring Facades!



Jaring Facades Clients from the countries all over the world



13. WHO WE ARE AND WHY CHOOSE US

  • JaringFacade is a company who focused on the quality,delivery time and after-sales services.
  • We can't promise price is the lowest in China,but we can promise our quality is the best.
  • We don't cheat anyone,we don't do one time business.
  • We have produced and exported undercut anchoring system,stone cladding fixings for 15years.
  • Most of our new clients are becoming long-term friends.
  • Even though we have done the best,there is still unhappy things happened in these years,
  • But we never avoid it,we always face the trouble and try the best to solve it with our clients.
