Hot Forged Bolts

Bolt is one kind of fastener,

it should be matched with nut to fasten

and connect two parts together.

This is called bolt connection.

Bolt has a threaded shaft,

with a wider head on one end,

and it has a variety of head designs

(Hex Head,Allen Head,Flange Head,

T Head,Square Head,Round Head...)
Inquiry

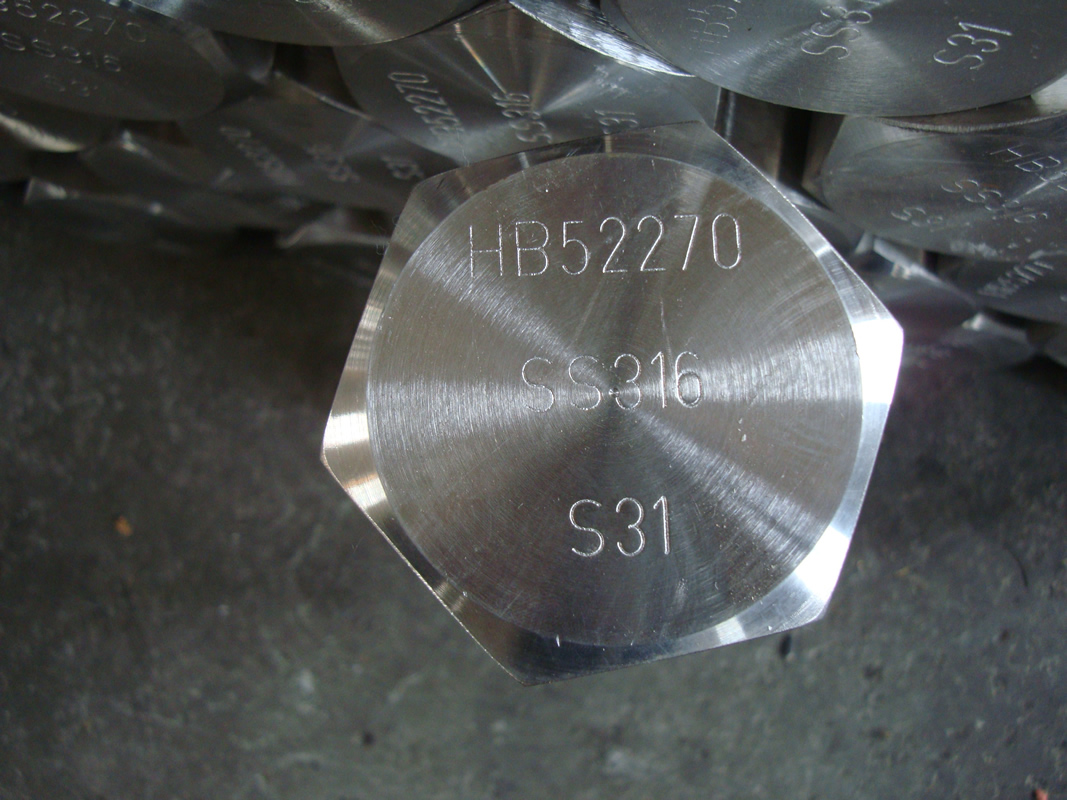

SS316 Larger Diameter Hex Bolt S31



Stainless Steel 304 316 Large Diameter Hot Forged Bolt Manufacturer in China



Stainless Steel High Strength Hot Forging Hex Bolt China Factory



High Quality and Strength Forge Bolt with Large Diameter M60

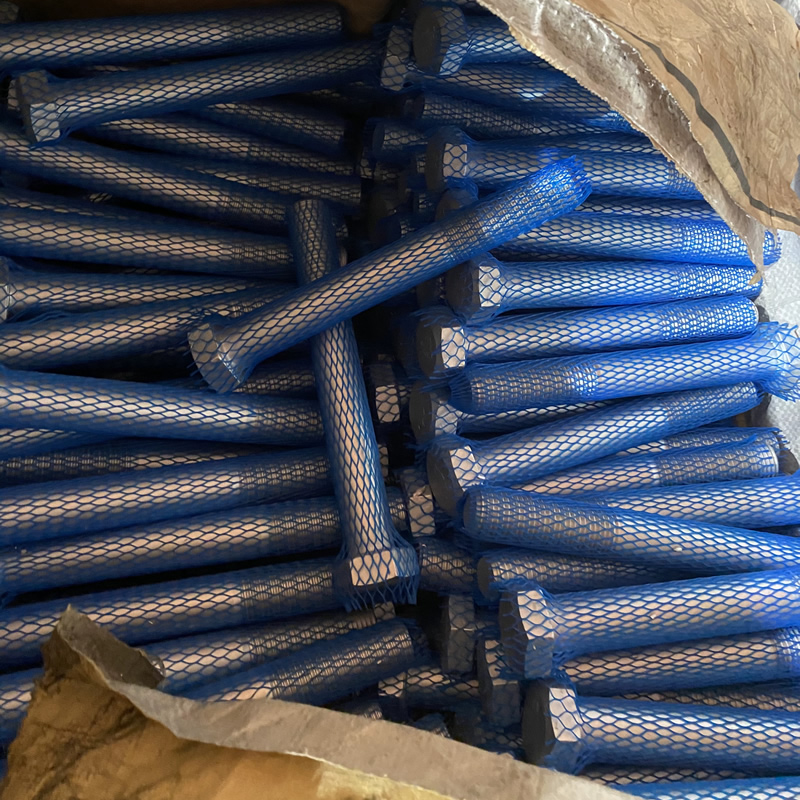

Packing Photos of Large Size Hex Bolt M42 M48



1.Product Description

Item: Hex Bolt DIN933

Diameter: M30-M60  1/4''-1-1/2''

Length: 50-200mm  1/2''-8''

Material: SS201,SS202,SS304/A2,SS316/A4



TradeMark: JARING

Certificate:  ISO9001,SGS

Min Order: 100pcs

Packing: In cartons and then on pallets

Delivery Term:  FOB/C&F/CIF

Lead Time: Within 10days after the order is confirmed

Payment Term:  30% as deposit,the balance is against the copy of B/L.





2.Technical Data of Hex Bolt (DIN933)



Stainelss Steel 201 202 304 316 Hex Head Bolt DIN933 Technical Data



3.Why Choose Jaring Fasteners



Leading Manufacturer of Stainless Steel Fasteners

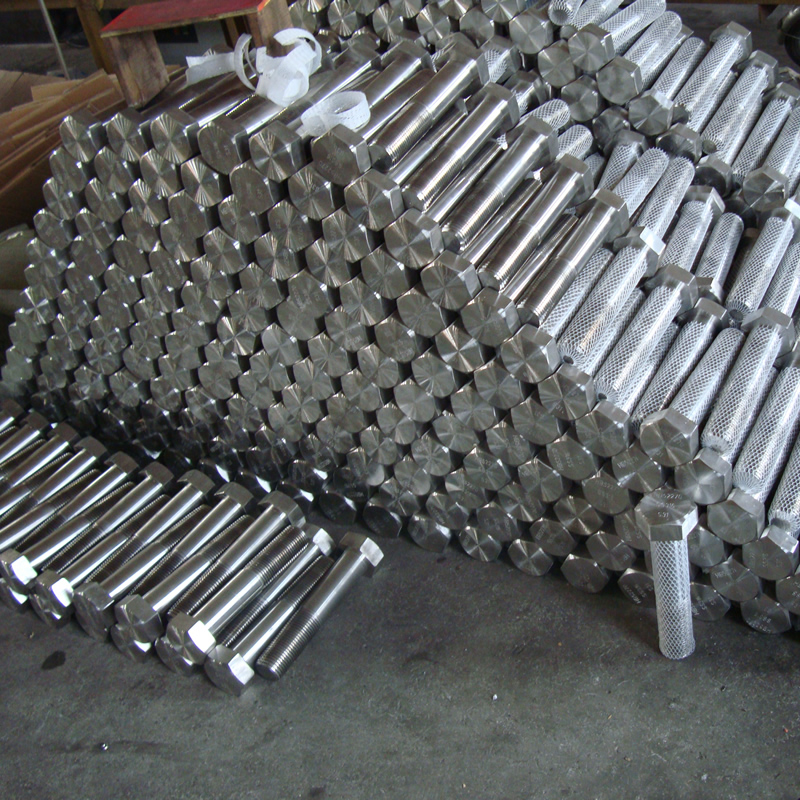

Real Photos of Jaring Fasteners(Bolts/Nuts/Screws/Washers/Anchors)



Packing and Delivery of Jaring Fasteners



4.Chemical Composition of SS304 VS SS316

Most of our clients don't know the difference between stainless steel 304 and 316.

We have made a form to show the different chemical components clearly.



STAINLESS STEEL GRADE 304 & 316
ELEMENT % SS304 SS316 / SS316L
Carbon (C) Max 0.08

316  Max 0.08

316L Max 0.03

Chromium (Cr) 18.0~20.0 16.0~18.0
Manganese (Mn) Max 2.0   Max 2.0
Nickel (Ni) 8.0~10.0 10.0~14.0
Phosphorus (P) Max 0.045 Max 0.045
Sulphur (S) Min 0.03 Min 0.03
Silicon (Si) 1.00 1.00
Molybdenum (Mo) / 2.0~3.0
Iron (Fe) Balance Balance
